Feature:
100% brand new and high quality
Quantity:1pcs
100% Brand New and High Quality!

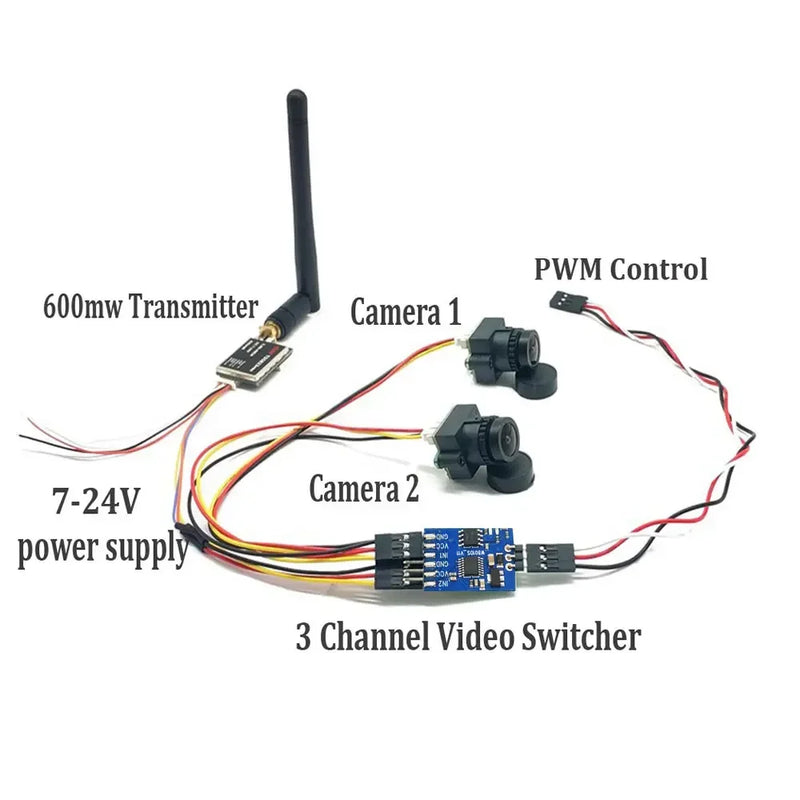

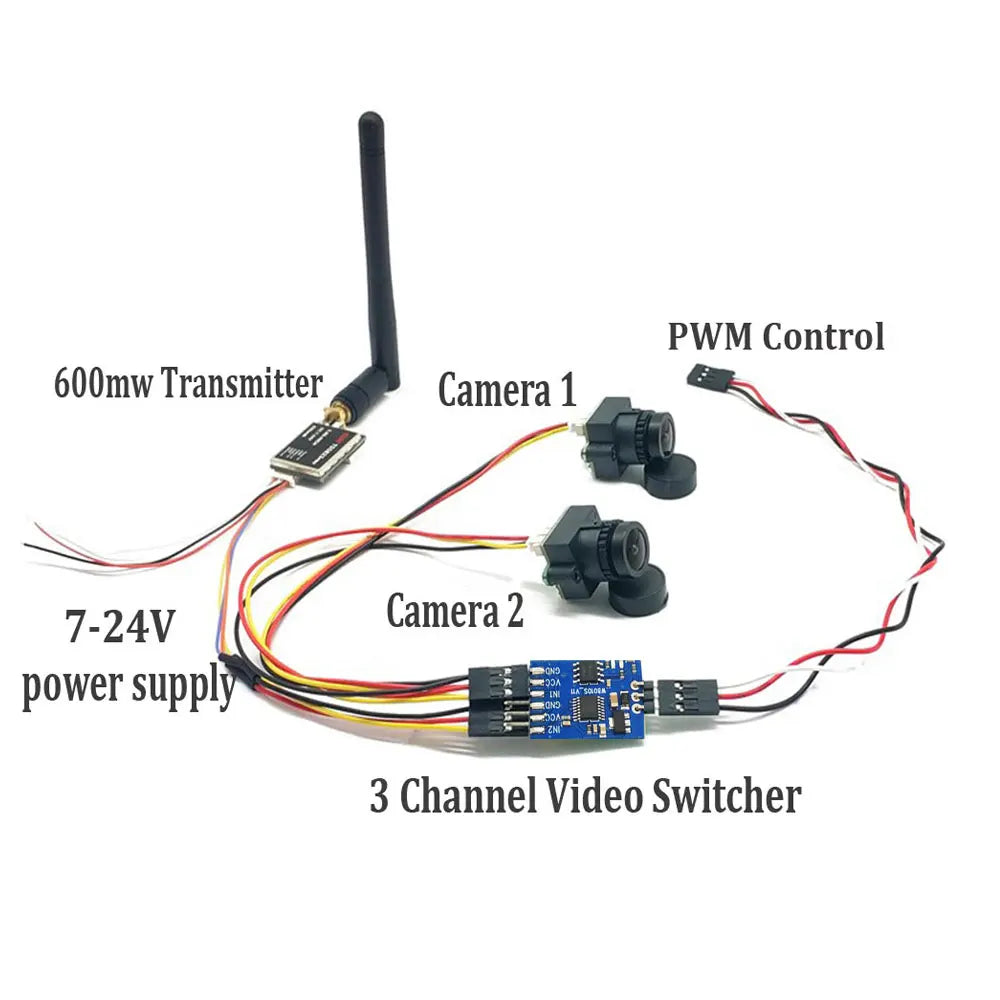

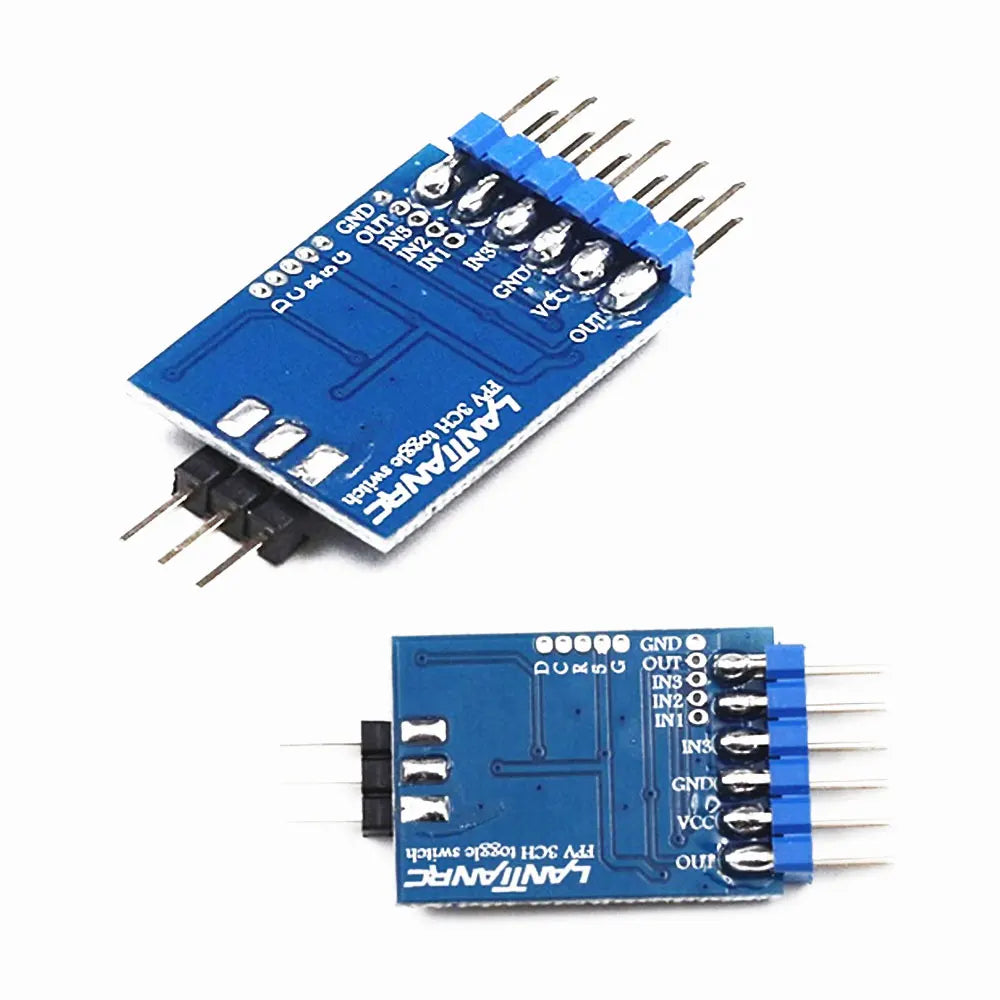

This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station. If you have multiple cameras on your plane, this is what you need.
3 channel Switchover module,adopts high speed video switch chip,effectively reduce the vibration of the Video image.
The control channel can be any proportional channel or 3-position switch channel. (2-position switch channel can only switch within two video input signals
Model: PV3IN1
Size: approx. 4.0*1.8*0.5cm
Input voltage: 4.8-6V
Input channels:3
Output channel: 1
Video signal impedance: 75Ω

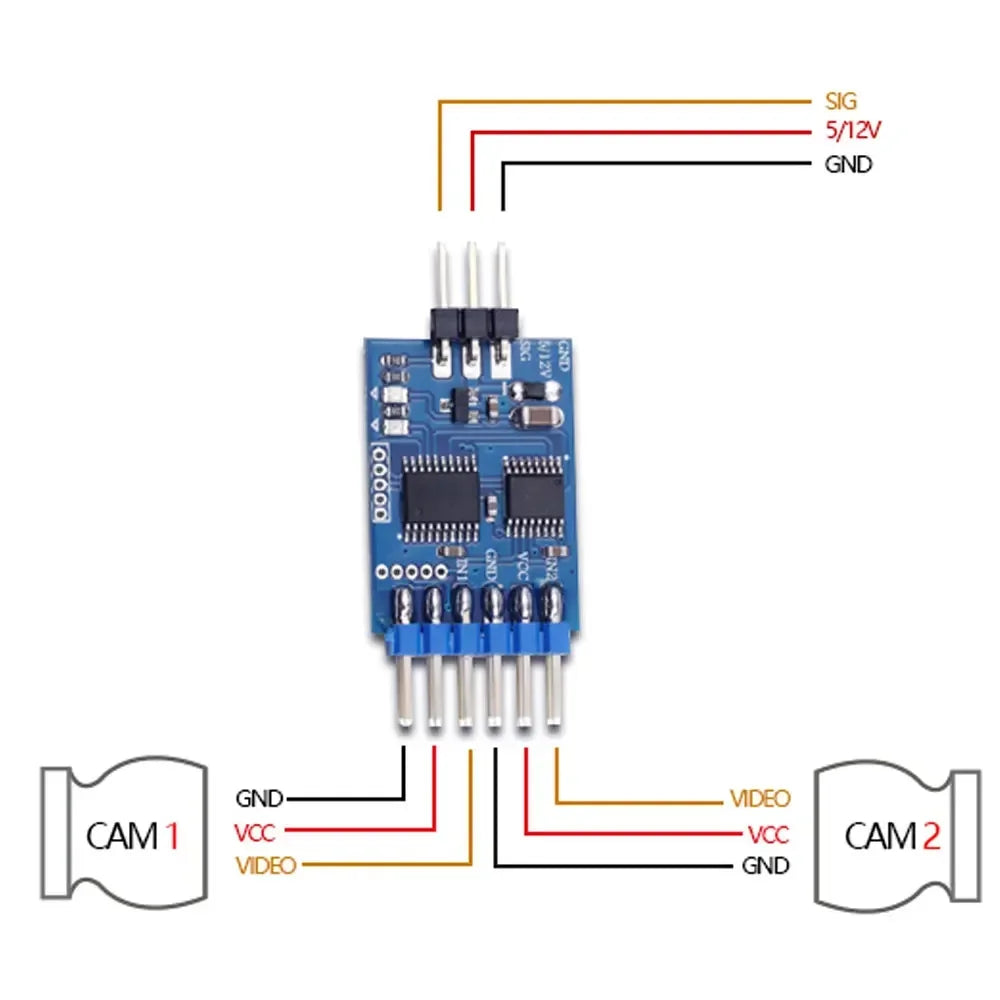

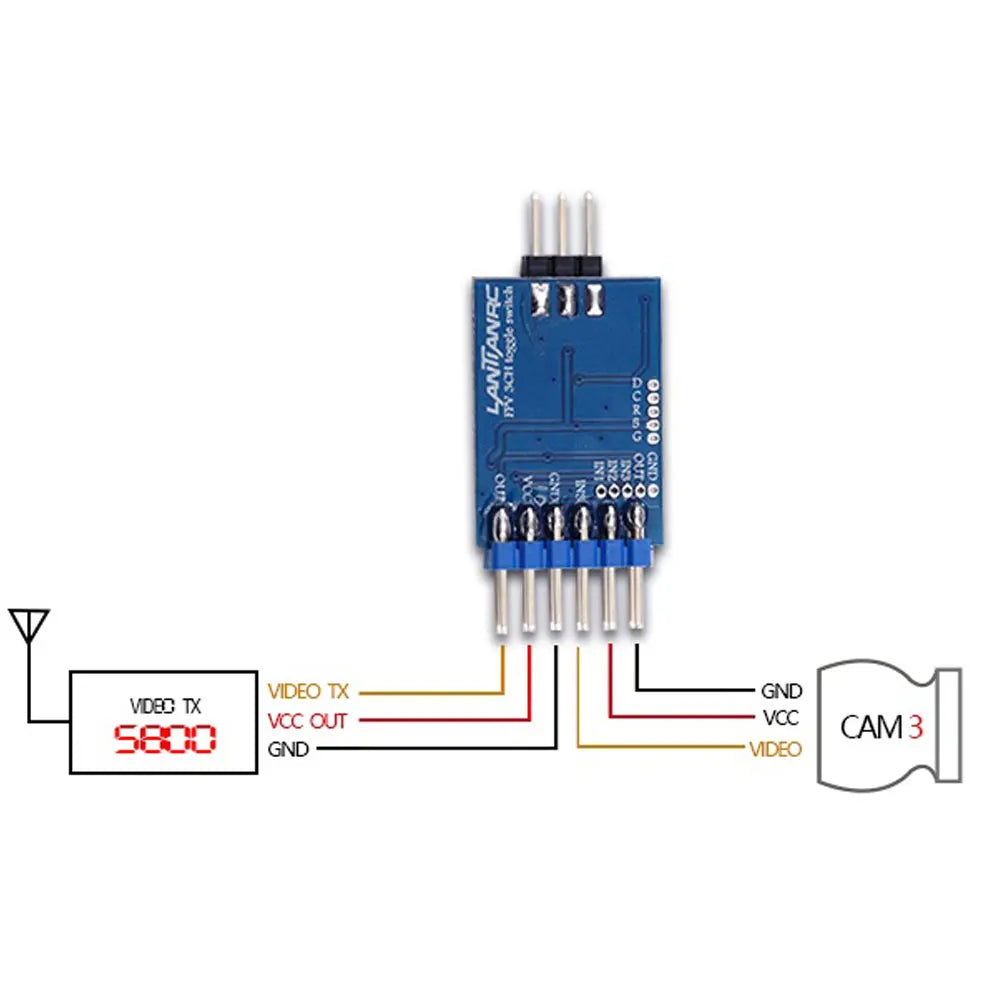

Port ""in"" is video signal input,IN1,IN2,IN3,OUT is video output ""-"" is negtive pole,""+"" suspend,""S"" is receiving Video signa

Specification:
Control signal:PWM
IN1:1000us+-200
IN2:1500us+-200
IN3:2000us+-200
Support 5-12V power supply
This module can connect 3 video sources and you can switch between different video sources with a 3 position switch to your ground station.

Package:

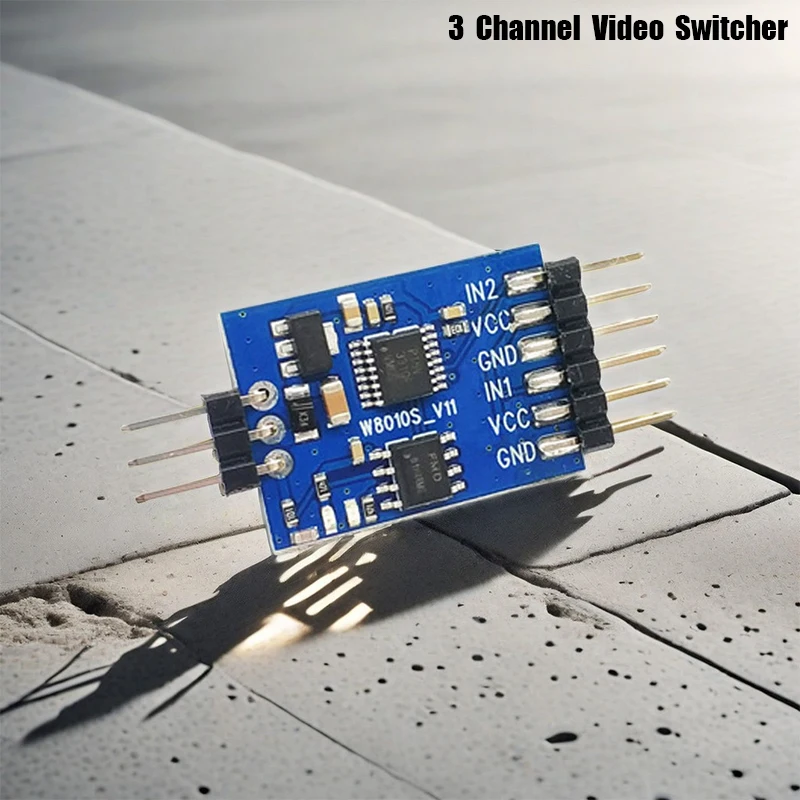

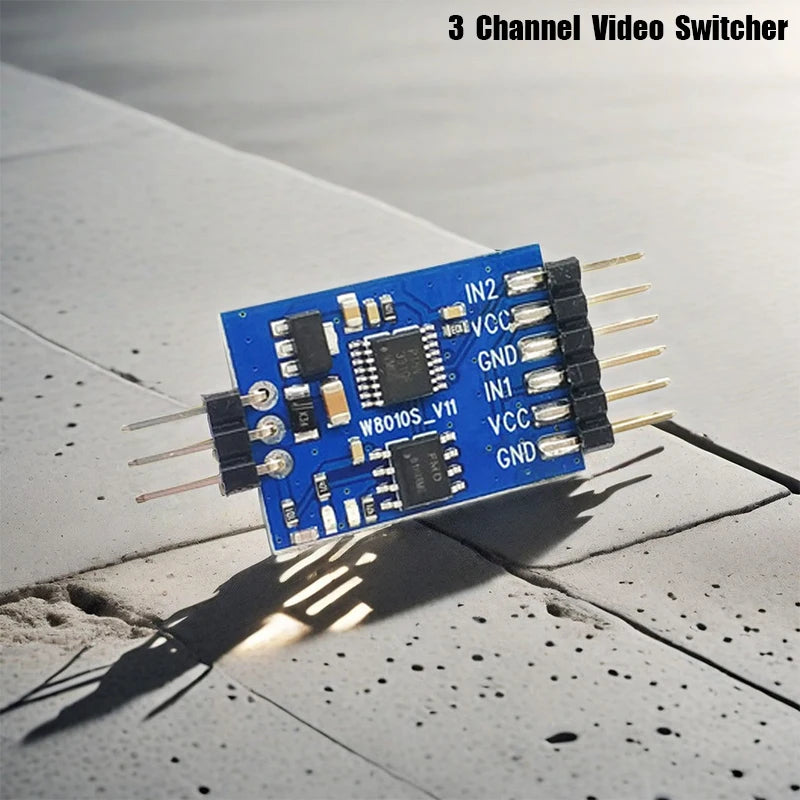

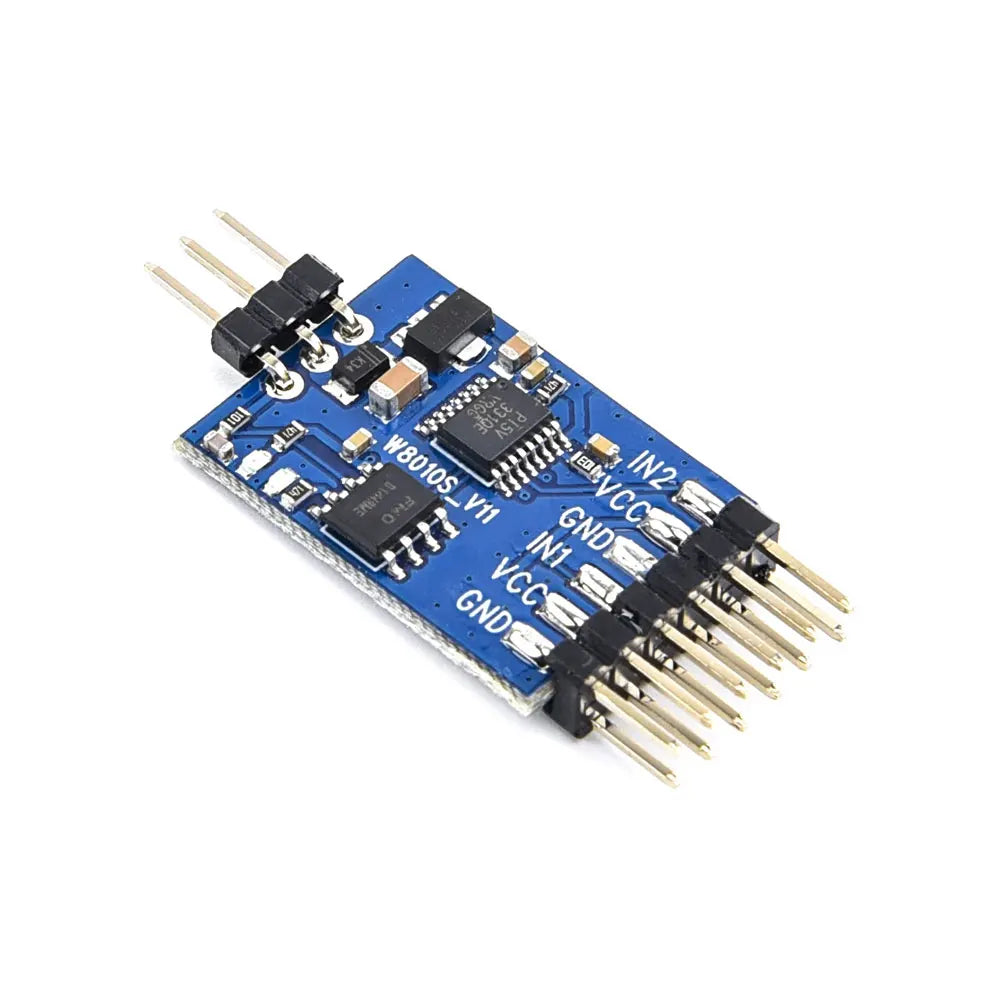

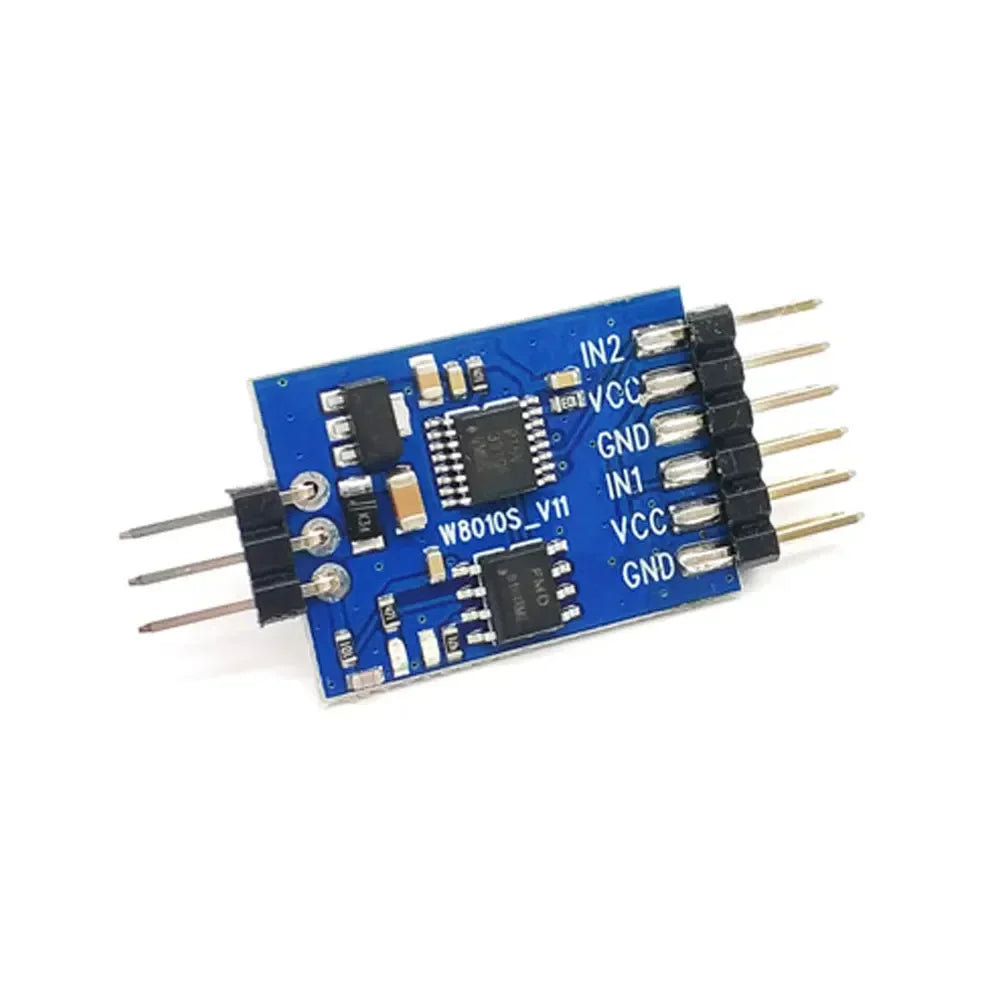

1PCS 3 channel Video Switcher Module
(other not include)
