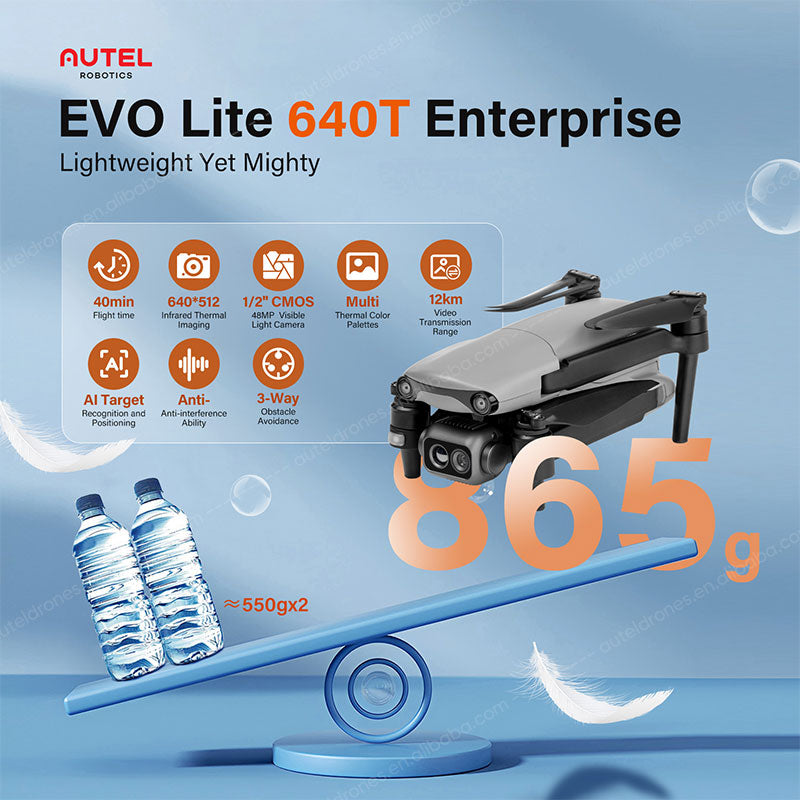

Weight

866 g

Maximum takeoff weight

866 g

Dimensions

210×123×95mm (folded, propellers included)

433×516×95mm (unfolded, propellers included)

Max. rotation speed

8000 rpm

Wheelbase

368 mm

Propeller Dimension

8.5 inch injection molded propeller. Spec: 8530

Propeller weight

7.5 g

Maximum ascent speed

Slow:3 m/s

Smooth:3 m/s

Standard: 5 m/s

Ludicrous: 6 m/s

Maximum descent speed

Slow:3 m/s

Smooth:2 m/s

Standard: 3 m/s

Ludicrous: 4 m/s

Maximum horizontal flight speed
(no wind near sea level)

Slow :3 m/s

Smooth:5 m/s

Standard: 10 m/s

Ludicrous: 18 m/s

Maximum Service Ceiling Above Sea Level

3000 meters

Maximum flight altitude

Chinese Mainland or EU: no more than 120 meters

US: no more than 400 feet

Note:In the flight application UAV, it can be set from 0 to 800 meters. To set beyond height required by law, you need to obtain
authorization from authority.

Maximum flight time
(no wind)

40 minutes

Note: Tested in lab with nearly no wind when aircraft flies at speed of 10 m/s and only for reference.

Maximum flight mileage

24 km

Maximum hover time
(no wind)

37 minutes

Note: Tested in lab with nearly no wind when aircraft hovers and only for reference.

Maximum tilt angle

Slow: 15°

Smooth: 30°

Standard: 30°

Ludicrous: 33°

Maximum rotation angular speed

Smooth: 60°/s

Standard: 120°/s

Ludicrous: 200°/s

Working temperature

-10℃~40℃

Battery hot replacement

Not support

Internal storage

Onboard storage: 4GB (support microSD card of up to 256GB)

GNSS

GPS/BDS/GLONASS

Hover accuracy

Vertically:

±0.1 meters (when visual positioning is working normally)

±0.3 meters (when GNSS is working normally)

Horizontally:

±0.15 meters (when visual positioning is working normally)

±0.3 meters (when GNSS is working normally)

Operating Frequency

2.4G: 2.400 – 2.476 GHz*; 2.400 – 2.4835 GHz

5.2G: 5.15 - 5.25 GHz**

5.8G: 5.725 - 5.829 GHz*, 5.725 - 5.850GHz

*Only applicable to SRRC regions

**Only applicable to FCC regions

Note: Some frequencies are only available in some regions and some frequencies are only allowed for indoor use. Check local laws
and regulations for details.

Maximum signal effective distance
(No interference, no obstruction)

FCC: 12 km

CE: 6 km

Effective transmitter power
(EIRP)

2.4G: ≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC/UKCA)

5.2G: ≤30dBm (FCC)

5.8G: ≤30dBm(FCC/SRRC/ISED/RCM); ≤14dBm(CE/UKCA)

Sensing range

Forward: 0.2~23 meters

Effective obstacle avoidance speed: ＜10m/s

Backward: 0.2~30 meters

Effective obstacle avoidance speed: ＜10m/s

Downward: 0.2~20 meters

FOV

Forward:

75° horizontally, 87° vertically

Backward:

35° horizontally, 45° vertically

Downward:

99° horizontally, 83° vertically

Effective use of the environment

Front, rear: The surface has rich texture and sufficient lighting conditions (>15 lux, normal indoor fluorescent lighting
environment)

Below: The ground is richly textured and the lighting conditions are sufficient (>15 lux, normal indoor fluorescent lighting
environment) The surface is made of diffuse reflective material and the reflectivity is >20% (such as walls, trees, people, etc.)

Image sensor

1/2 inch CMOS, 48 million pixels

Lens

DFOV: 83.4°

Equivalent focal length of 35mm: 24 mm

Aperture: f/2.8

Focus distance: 0.5 meter ~ ∞

Focus: FF (Fixed Focus)

ISO range

Auto/Manual: ISO100 ~ ISO6400

Shutter speed

1/10000 ~1/60 seconds

Defog mode

Support

Zoom

4K: 1-16x digital zoom

8K: 1-8x digital zoom

Maximum photo size

4000×3000, 8000×6000

Photo format

JPG

Video resolution

4000×3000 P30

Video format

MP4/MOV

Video coding format

H.265/H.264

Support file system

FAT32/exFAT

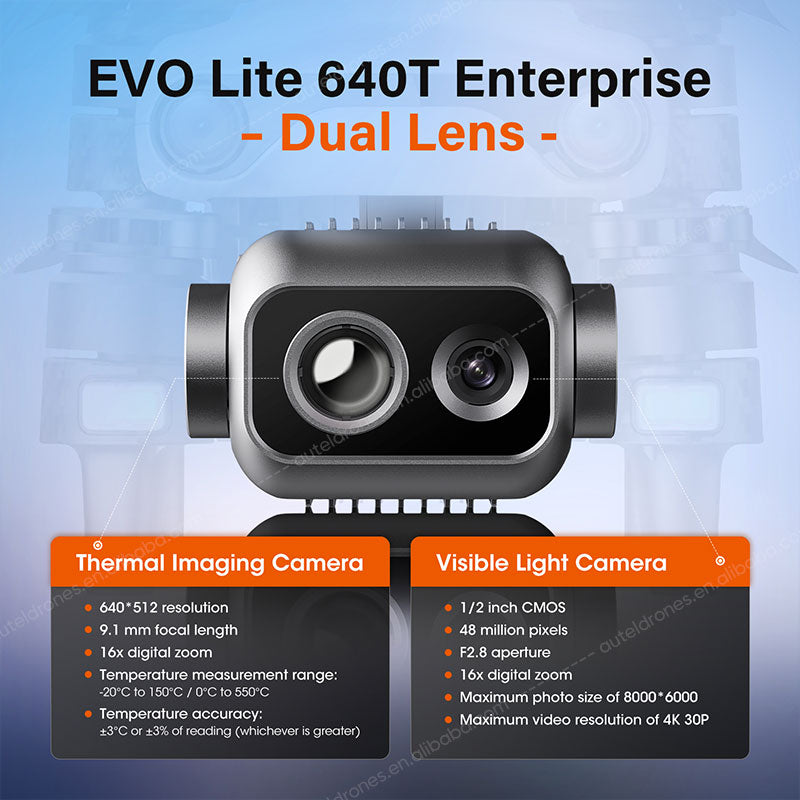

Image Sensor

Uncooled VOx Microbolometer

Lens

FOV: 61°

Focal length: 9.1 mm

Aperture: f/1.0

Focusing distance: 2.2 m ~ ∞

Sensitivity

≤50mK@f/1.0, 25°C

Pixel Pitch

12um

Wavelength

8 - 14um

Radiometric Measurement Method

Center measurement/Pot measurement/Rectangular measurement

Radiometric Temperature Range

-20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)

Radiometric Measurement Accuracy

±3°C or reading ±3% (using the larger value) @ ambient temperature ranges from -20°C to 60°C

Accurate Temperature

1 ~ 25 m

Digital Zoom

1-16x digital zoom

Temperature Alert

In area temperature measurement, support high and low temperature alarm thresholds, reporting coordinates and temperature values

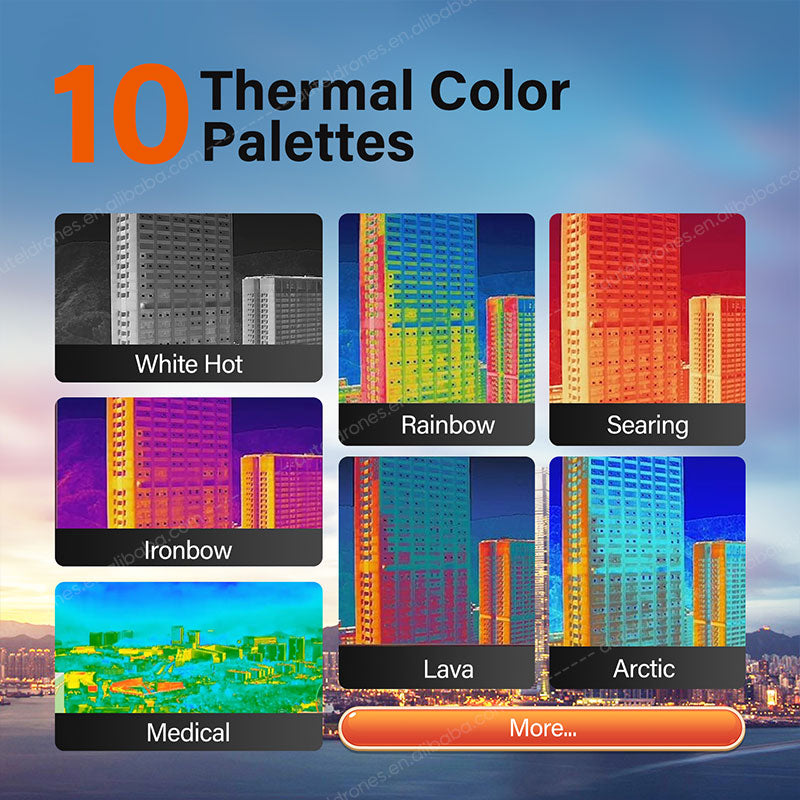

Palette

White Hot/Black Hot/Searing/ Rainbow/Grey/Ironbow/Cold and Hot

Photo Size

640×512

Photo Format

JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)

Video Resolution

640×512 30P

Video Format

MP4/MOV

Mechanical scope

Pitch: -135°~45°

Roll: -50°~50°

Yaw: -90°~90°

Controllable rotation range

Pitch: -90°~30°

Stable system

Three-axis stabilization

Maximum control speed (pitch)

100°/s

Angualr vibration range

±0.003°

Material

PC+ABS

Dimensions

226.3×137.7×31.5 mm (antennas folded)

226.3×215.4×31.5 mm (antennas unfolded)

Weight

607 g

Operating Temperature

-10°C to 40°C

Storage Temperature

+15°C ~ +25°C (within a year)

0°C ~ +30°C (within three months)

-20°C ~ +45°C (within a month)

Protection Rating

IP43

Internal Storage

Built-in storage of 32GB

Available storage: 24GB

MicroSD Extension

Supported

Operating System

Based on Android 6.0.1

Application Installation

Supports the installation of third-party Android apps

USB -C

Charging: supports PD/QC fast charging, up to 65W

USB -A

USB2.0

GNSS

GPS/Galileo/BDS/GLONASS

Wi-Fi Protocol

802.11a/b/g/n/ac

Supports 2×2 MIMO Wi-Fi

Wi-Fi Operating Frequency

2.4G:

2.400 – 2.476GHz*, 2.400 – 2.4835GHz

5.8G:

5.725 - 5.829GHz*, 5.725 - 5.850GHz

*Only applicable to SRRC regions

Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and
regulations.

Wi-Fi Effective Isotropic
Radiated Power (EIRP)

2.4G:

≤30dBm (FCC/ISED); ≤20dBm (CE/SRRC); ≤12.14dBm (MIC)

5.8G:

≤30dBm (FCC/SRRC/ISED); ≤14dBm (CE)

Bluetooth

Bluetooth 4.2

Bluetooth Operating Frequency

2.400-2.4835GHz

Note: Some regions specify frequency ranges. For details, please refer to local laws and regulations.

Bluetooth Effective Isotropic Radiated Power (EIRP)

≤20dBm

Antenna

Dual antennas, 1T2R, detachable design

Operating Frequency

900M: 902 - 928MHz*

2.4G: 2.400 – 2.476GHz**，2.400 – 2.4835GHz

5.2G: 5150-5250MHz***

5.8G: 5.725 - 5.829GHz**，5.725 - 5.850GHz

*Only applicable to FCC and ISED regions

**Only applicable to SRRC regions

***Only applicable to FCC and RCM regions

Note: Some frequencies are only available in some regions or only used in door. For details, please refer to local law and
regulations.

Effective Isotropic Radiated Power
(EIRP)

900M：

≤30dBm (FCC/ISED)

2.4G：

≤30dBm (FCC/ISED/RCM); ≤20dBm(CE/SRRC)

5.2G:

≤30dBm (FCC/RCM)

5.8G：

≤30dBm (FCC/SRRC/ISED/RCM); ≤14dBm(CE)

Maximum Transmission Distance
(Without Interference and Blocking)

FCC: 12 km

CE/SRRC: 8 km

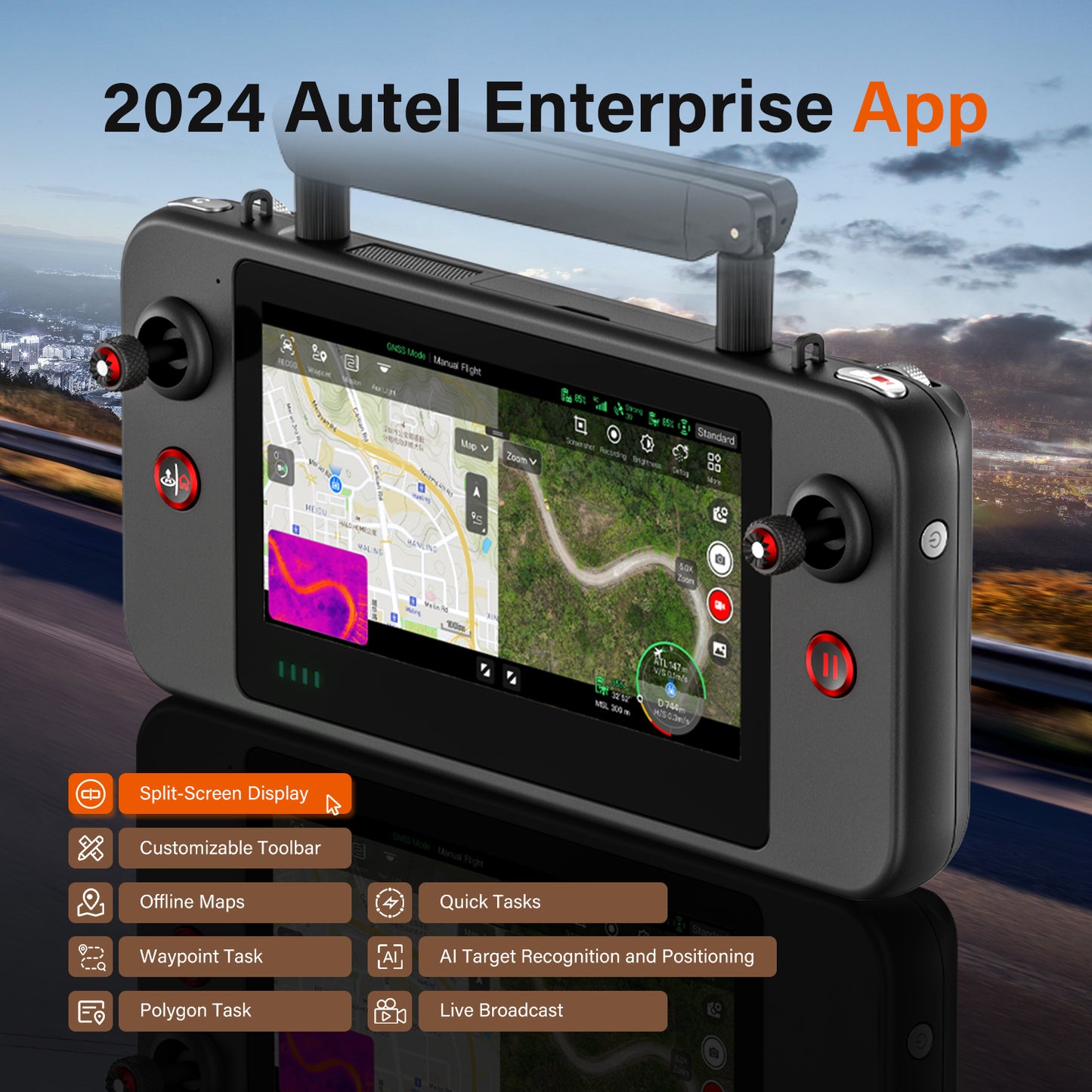

Resolution

1440×720

Refresh Rate

60Hz

Touch Control

Supports 10-point touch

Autel Smart Controller SE V2 Battery

Battery Type

Li-Po

Rated Capacity

1900 mAh

Voltage

DC 7.7V

Battery Energy

14.63 Wh

Charging Time

About 90 minutes

(charging time is related to actual remaining power)

Battery Endurance

1.5 hours (Max brightness)

2.5 hours (50% brightness)

Battery Replacement

Supported

Operating Temperature

0 ~ +40℃

Battery Type

LiPo 3S

Rated Capacity

6175 mAh

Battery Energy

68.7 Wh

Voltage

11.13 V

Charging Voltage Limit

12.75V

Rated Charging Power

63.75W

Rated Charging Power

78W

Weight

309g

Battery charging temperature

+5-+45℃

(When the battery temperature is below 5℃, the battery stops charging. When the battery temperature is above +45℃, the battery
stops charging.)

Ideal storage environment

+ 22℃ ~ +28℃

Storage temperature and humidity

- 10℃ ~ +30℃, 65 ± 20%RH

power input

100-240V ~ 50/60 Hz, 1.5 A

Output port

Battery charging interface/USB-A

Battery charging interface

12.75V⎓5A

USB charging port

5V⎓3A, 9V⎓2A, 12V⎓1.5A

Rated power

63.75W Max
