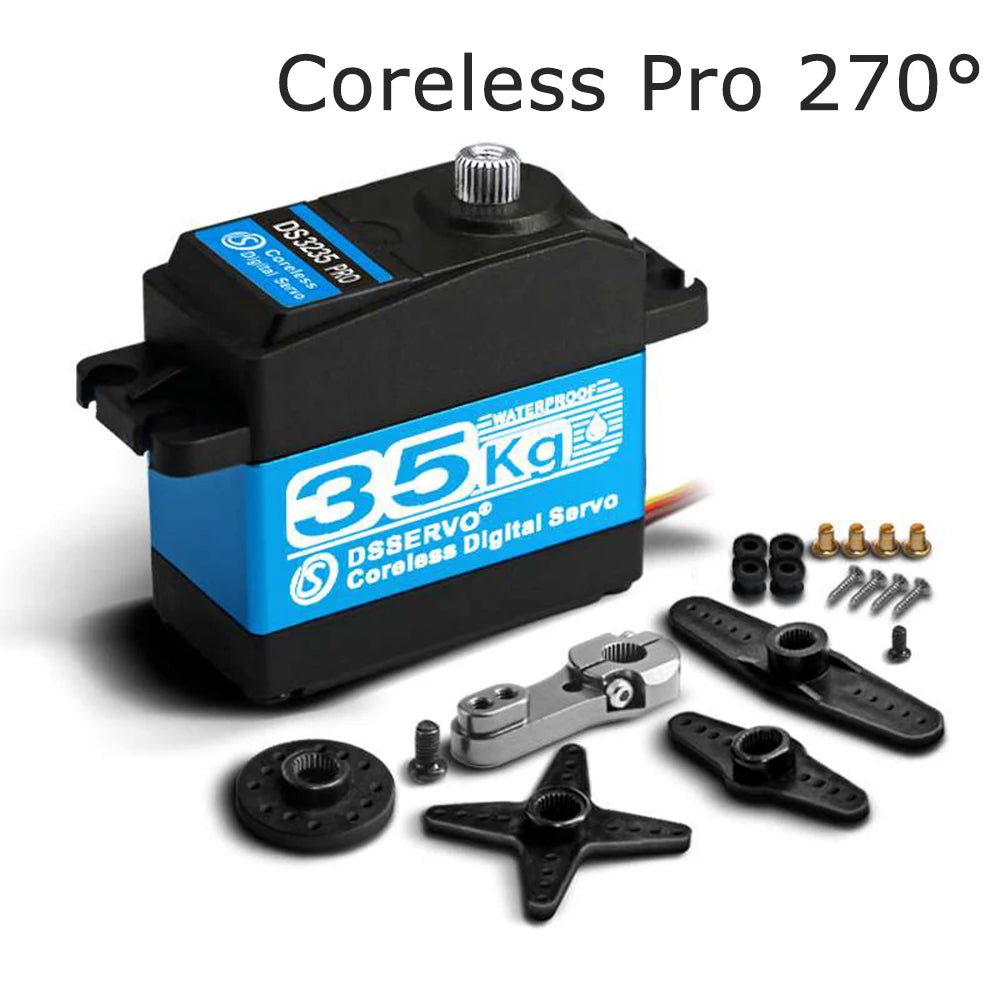

Coreless Servo 35Kg Ds3235 High Speed Servo Pro 270 Degree Digital And Stainless Steel Gear Servo Waterproof for Robotic Car
Coreless Servo 35Kg Ds3235 High Speed Servo Pro 270 Degree Digital And Stainless Steel Gear Servo Waterproof for Robotic Car
Regular price
From $51.91
Regular price
$0.00
Sale price
From $51.91
Unit price
per
- Free Shipping
- Free Fast-Delivery Upgrade
- Up to 30-Day Returns
SPECIFICATIONS
Brand Name: DIYmalls
Choice: yes
High-concerned chemical: None
Material: Metal
Origin: Mainland China
is_customized: Yes
Coreless Servo 35Kg Ds3235 High Speed Servo Pro 270 Degree Digital And Stainless Steel Gear Servo Waterproof for Robotic Car
Specification:
• Torque:23kg/cm at(5V),30 kg/cm at(7.4V),35kg/cm.at (8.4V);
• Motor Type: coreless Motor;
• Weight: 60 g (2.12 oz) ;
• Operating Voltage: 5 ~ 8.4 DC Volts; • Dead brand: 2μs ;

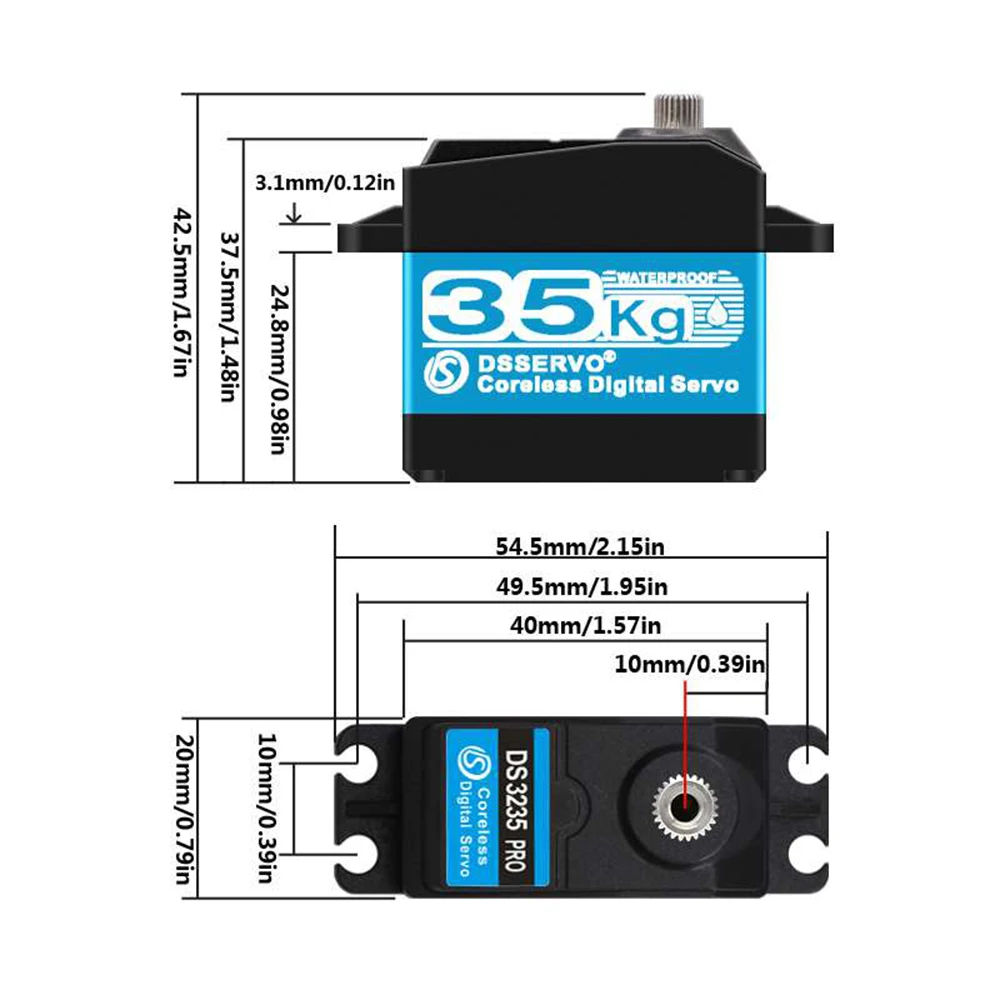

• Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in) ;

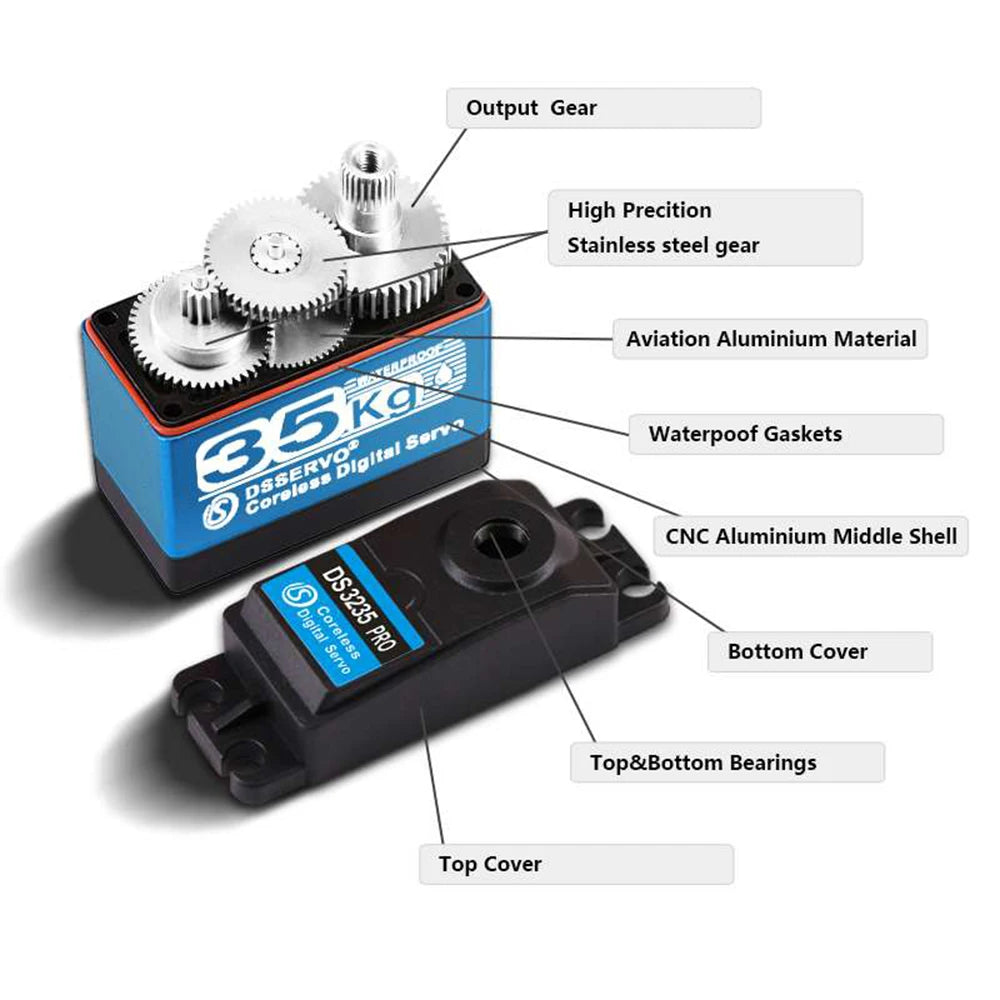

• Gear Type: Stainless Steel & Aluminum;
• Working frequence: 1520μs / 333hz;

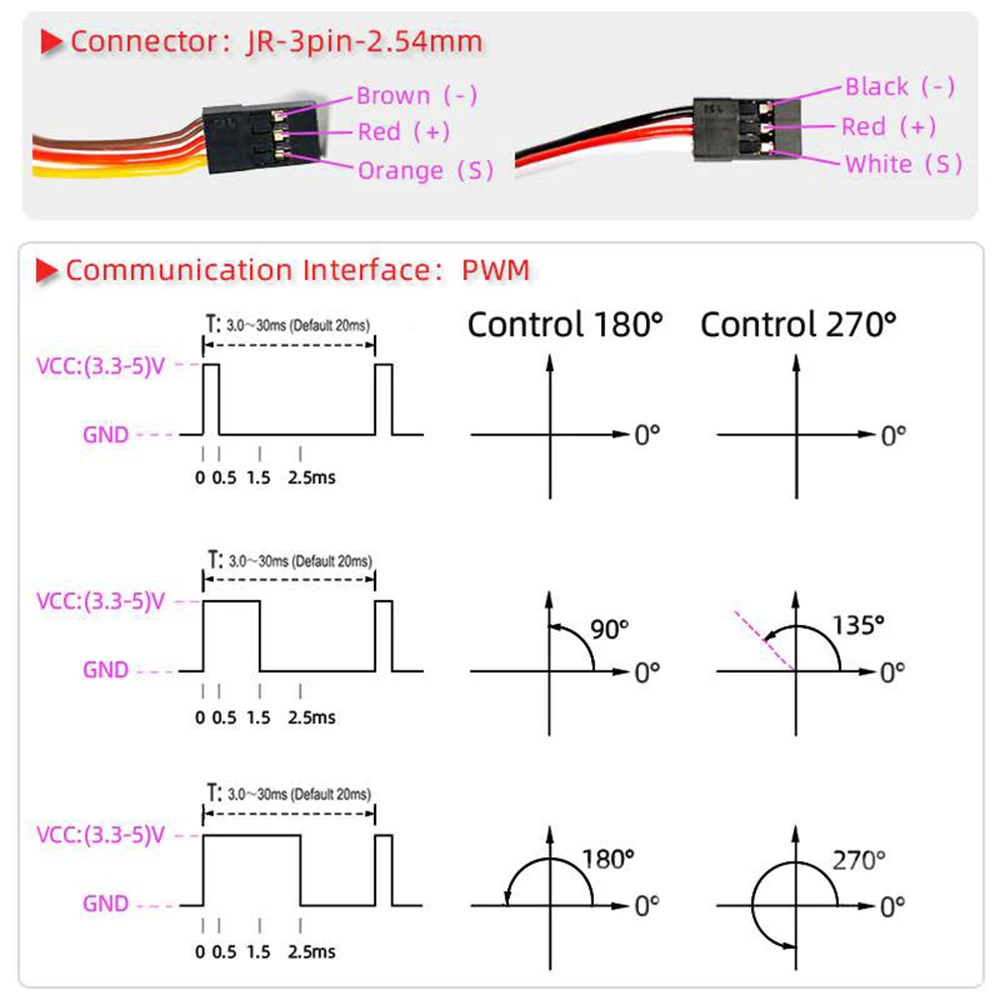

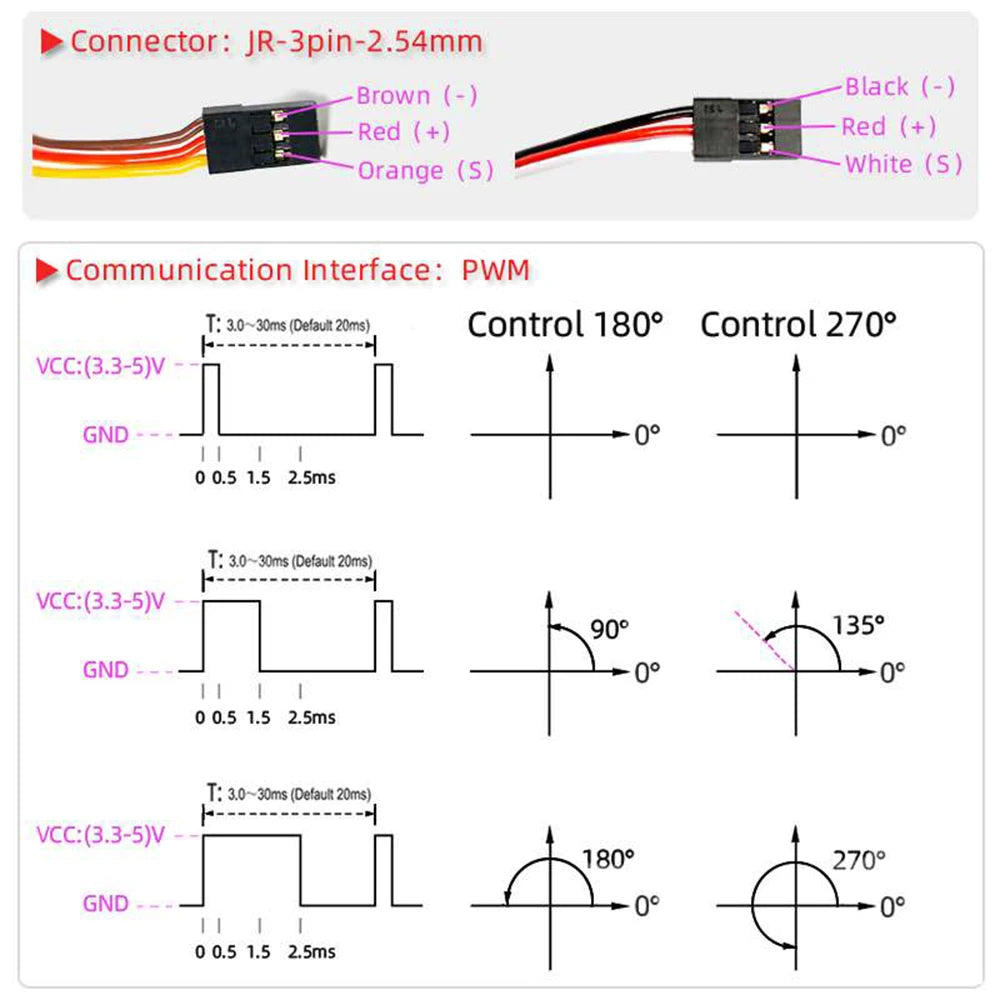

Control Specification
Control System: PWM(Pulse width modification)
Pulse width range: 500～2500µsec
Neutral position: 1500µsec
Running degree: 180° or 270°(when 500～2500 μ sec)
Dead band width: 2 µsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500～2500 µsec)
Electrical Specification (35kg coreless）
Operating Voltage: --------------5V-----------7.4V-----------8.4V
Idle current(at stopped): -------5mA----------5mA-----------5mA
Operating speed (at no load): 0.18 sec/60°---0.13sec/60°----0.11sec/60°
Stall torque (at locked): -------23 kg-cm------30 kg-cm------35 kg-cm
Stall current (at locked): --------2.2A----------2.9A------------3.2A
Electrical Specification (35kg coreless pro)
Operating Voltage: --------------5V-----------7.4V-----------8.4V
Idle current(at stopped): -------5mA----------5mA-----------5mA
Operating speed (at no load): 0.16 sec/60°---0.11sec/60°----0.095sec/60°
Stall torque (at locked): -------31 kg-cm------41 kg-cm------45 kg-cm
Stall current (at locked): --------3.5A----------5.2A------------5.8A
Package Included::

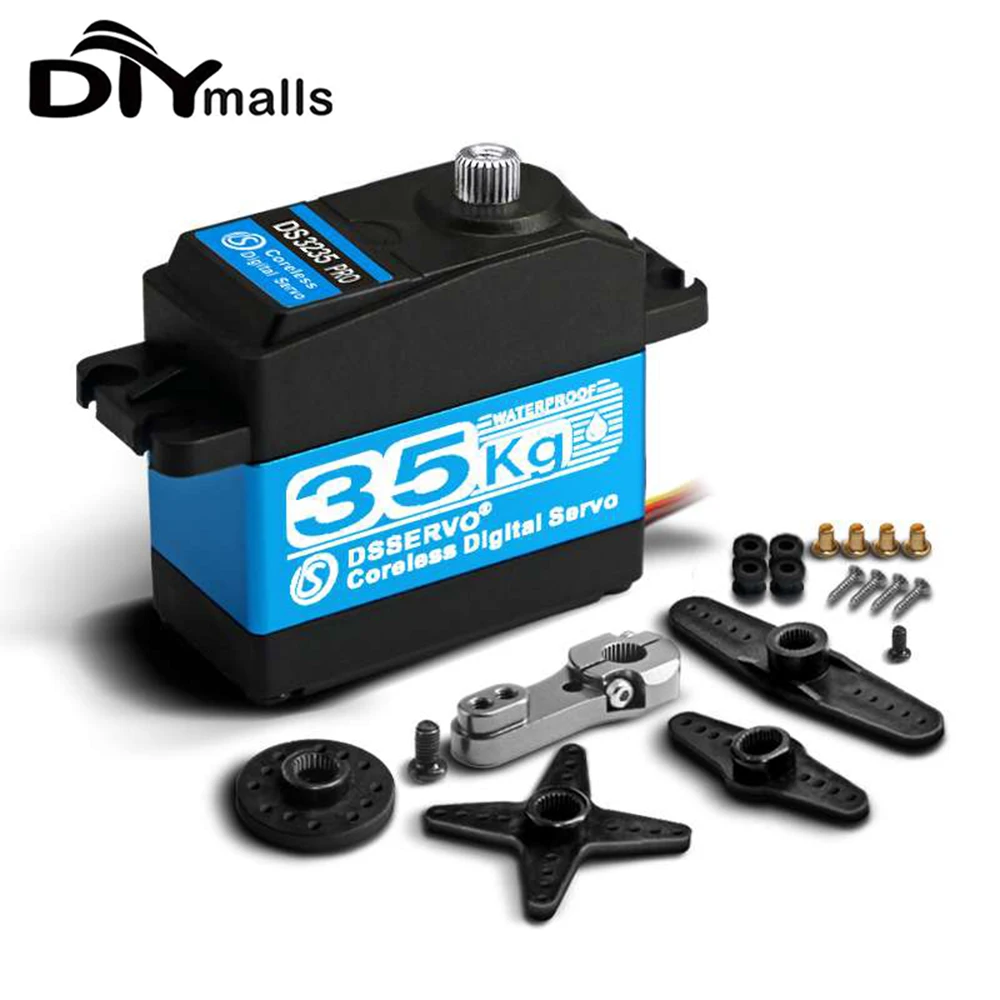

1 x DS3235 Digital Metal Robotic Servo
1 x 25T Adjustable metal servo arm
1x accessories (like pictures)
Specification:
• Torque:23kg/cm at(5V),30 kg/cm at(7.4V),35kg/cm.at (8.4V);
• Motor Type: coreless Motor;
• Weight: 60 g (2.12 oz) ;
• Operating Voltage: 5 ~ 8.4 DC Volts; • Dead brand: 2μs ;
• Size: 40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in) ;
• Gear Type: Stainless Steel & Aluminum;
• Working frequence: 1520μs / 333hz;
Control Specification
Control System: PWM(Pulse width modification)
Pulse width range: 500～2500µsec
Neutral position: 1500µsec
Running degree: 180° or 270°(when 500～2500 μ sec)
Dead band width: 2 µsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500～2500 µsec)
Electrical Specification (35kg coreless）
Operating Voltage: --------------5V-----------7.4V-----------8.4V
Idle current(at stopped): -------5mA----------5mA-----------5mA
Operating speed (at no load): 0.18 sec/60°---0.13sec/60°----0.11sec/60°
Stall torque (at locked): -------23 kg-cm------30 kg-cm------35 kg-cm
Stall current (at locked): --------2.2A----------2.9A------------3.2A
Electrical Specification (35kg coreless pro)
Operating Voltage: --------------5V-----------7.4V-----------8.4V
Idle current(at stopped): -------5mA----------5mA-----------5mA
Operating speed (at no load): 0.16 sec/60°---0.11sec/60°----0.095sec/60°
Stall torque (at locked): -------31 kg-cm------41 kg-cm------45 kg-cm
Stall current (at locked): --------3.5A----------5.2A------------5.8A
Package Included::
1 x DS3235 Digital Metal Robotic Servo
1 x 25T Adjustable metal servo arm
1x accessories (like pictures)
